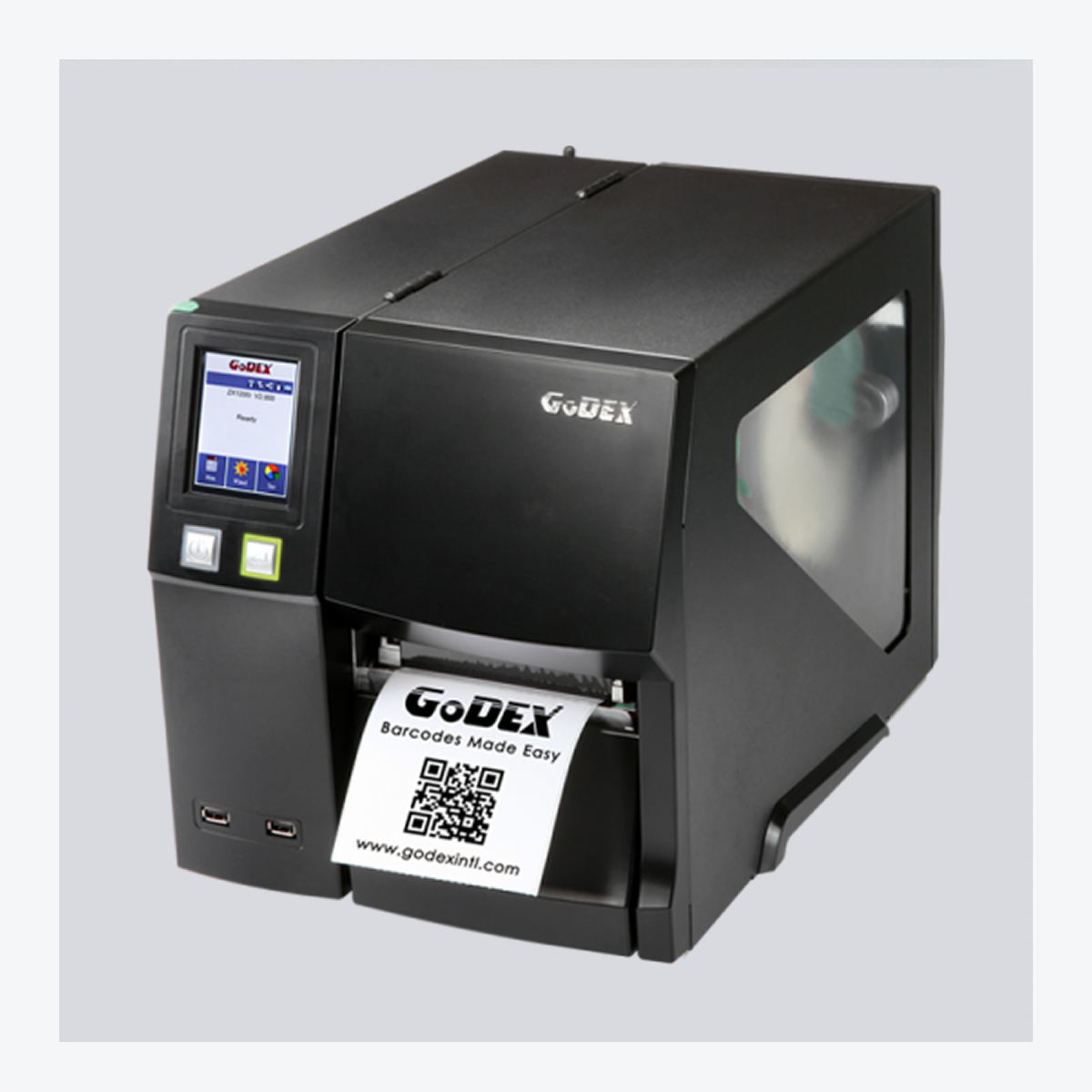

GoDEX ZX1200Xi Industrial Label Printer

GoDEX ZX1200Xi Industrial Label Printer

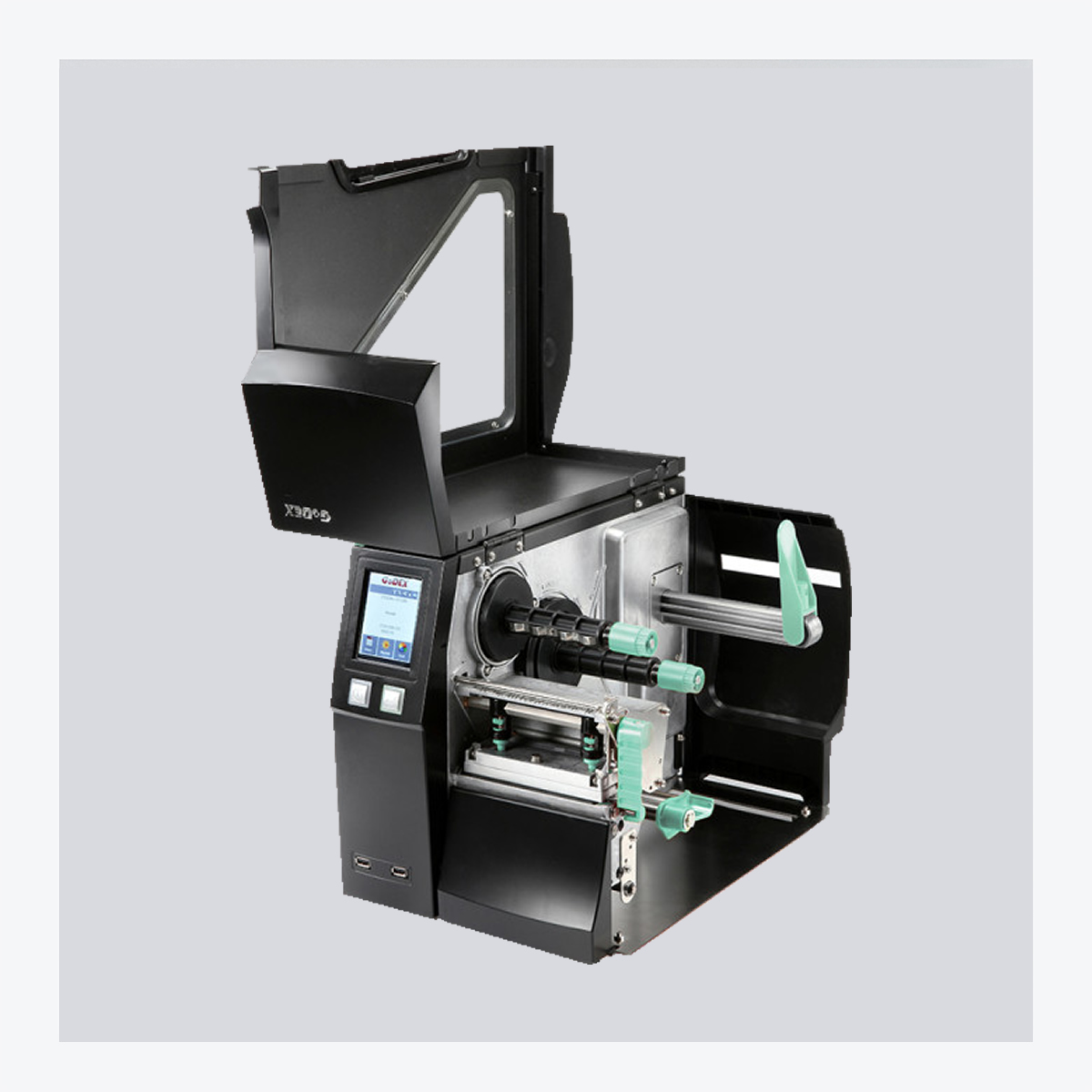

GoDEX ZX1200Xi Industrial Label Printer - Image 2
GoDEX ZX1200Xi Industrial Label Printer - Image 3

Please note that all hardware sales (including Godex printers and unwind stands) will be processed separately and shipped direct to reduce shipping costs and lead times.


Thermal Transfer Printing with GoDEX ZX1200Xi Industrial Label Printers

The perfect industrial thermal transfer printer for medium to heavy duty applications.



Features:

  • Available for 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm) resolution
  • Intelligent Colour LCD panel for easy configuration
  • Robust metal casing and a solid print mechanism to take on heavy duty jobs
  • Calibration button makes label Calibration simple and fast
  • Multiple interfaces for multiple requirements
  • USB Host for extension memory and standalone operation
  • Automatic self-adjustment for coated inside/outside ribbons
  • Supports 450-meter ribbon capacity and 8-inch diameter label (3″core) for bulk printing
  • Modular TPH- easy to do the maintenance



Software Download & Tutorials:


DOWNLOAD SOFTWARE
How to edit text through GoLabel II?
Layout function introduction
Variable set up
How to set up Search to print?



Features:

  • Large intuitive touch screen LCD allows the user to be in control
  • Three USB host ports standard allows integration with several input and storage devices devices at one time
  • High performance printer designed for high volume applications
  • Up to 14 ips print speed
  • 203DPI printer head



Specifications:

Print Method Thermal Transfer / Direct Thermal
Resolution 203 dpi (8 dots/mm)
Print Speed Up to 14 IPS (356mm/s)
Print Width 4.09″ (104 mm)
Print Length Min. 0.16″ (4 mm)** – Max. 180″ (4572 mm)
Processor 32-bit RISC CPU
Memory Flash: 128 MB Flash (60 MB for user storage), SDRAM: 32 MB
Interfaces
  • USB 2.0
  • RS-232 ( DB-9)
  • Ethernet (RJ45) IEEE 802.3 10/100 Base-Tx
  • USB Host (x2 Front and x1 Rear)
Ribbon
  • Length: 450 m
  • Width: 30 mm Min – 110 mm Max
  • Core diameter: 25.4 mm
Control Panel
  • Backlight 3.2″ touch screen LCD
  • 1 power on/standby button with green colour LED backlight
  • 1 control key: FEED / PAUSE / CANCEL with dual colour LED back-light: Ready (Green); Error (Red)
  • 1 calibration button at rear panel



Additional Information:

Weight 16.8 kg
Dimensions 64 × 39 × 42 cm
Printer Size 4″
Print Method Thermal Transfer
Interface Bluetooth (Added Option), Ethernet, Serial (RS232), USB, Wi-Fi (Added Option)
DPI 203
