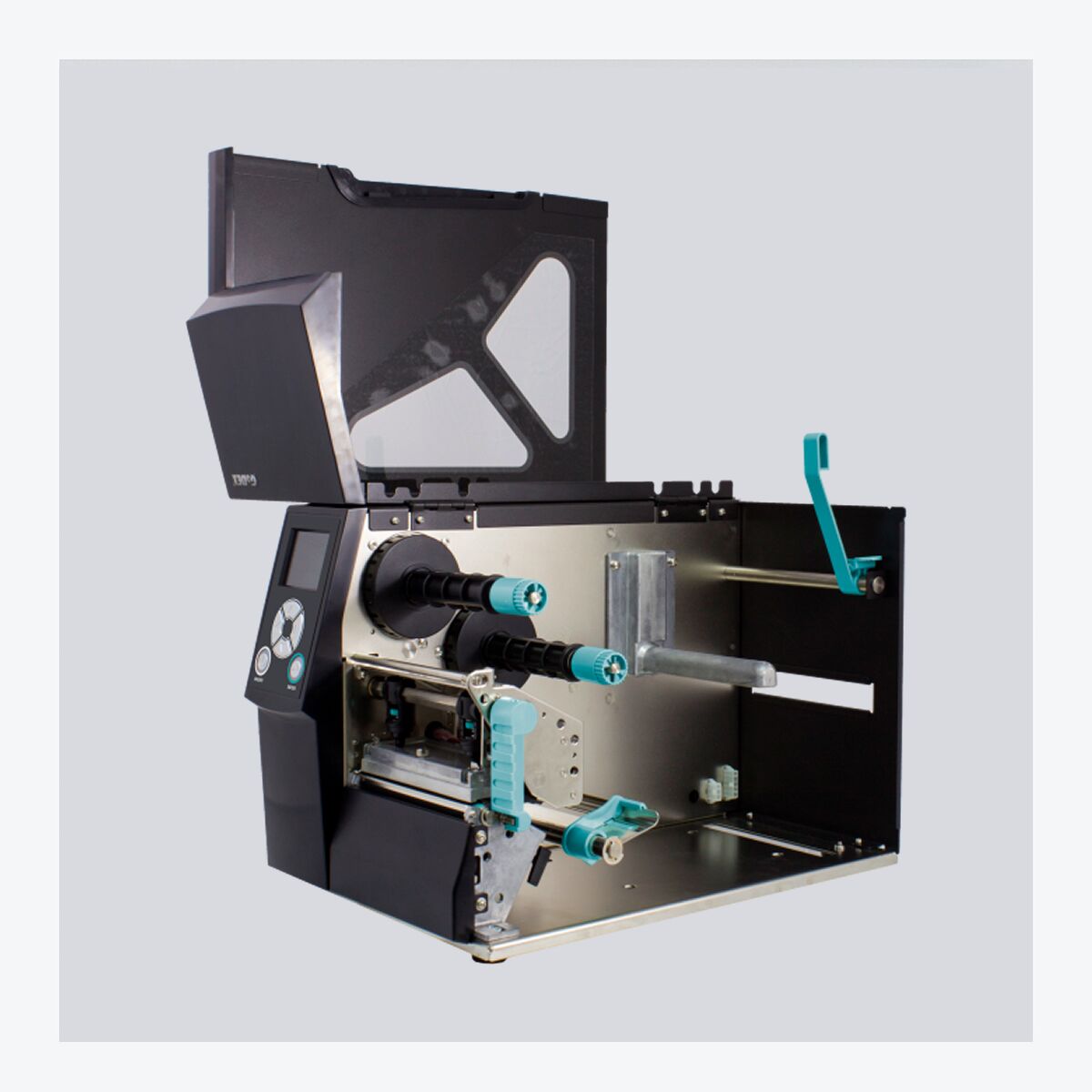

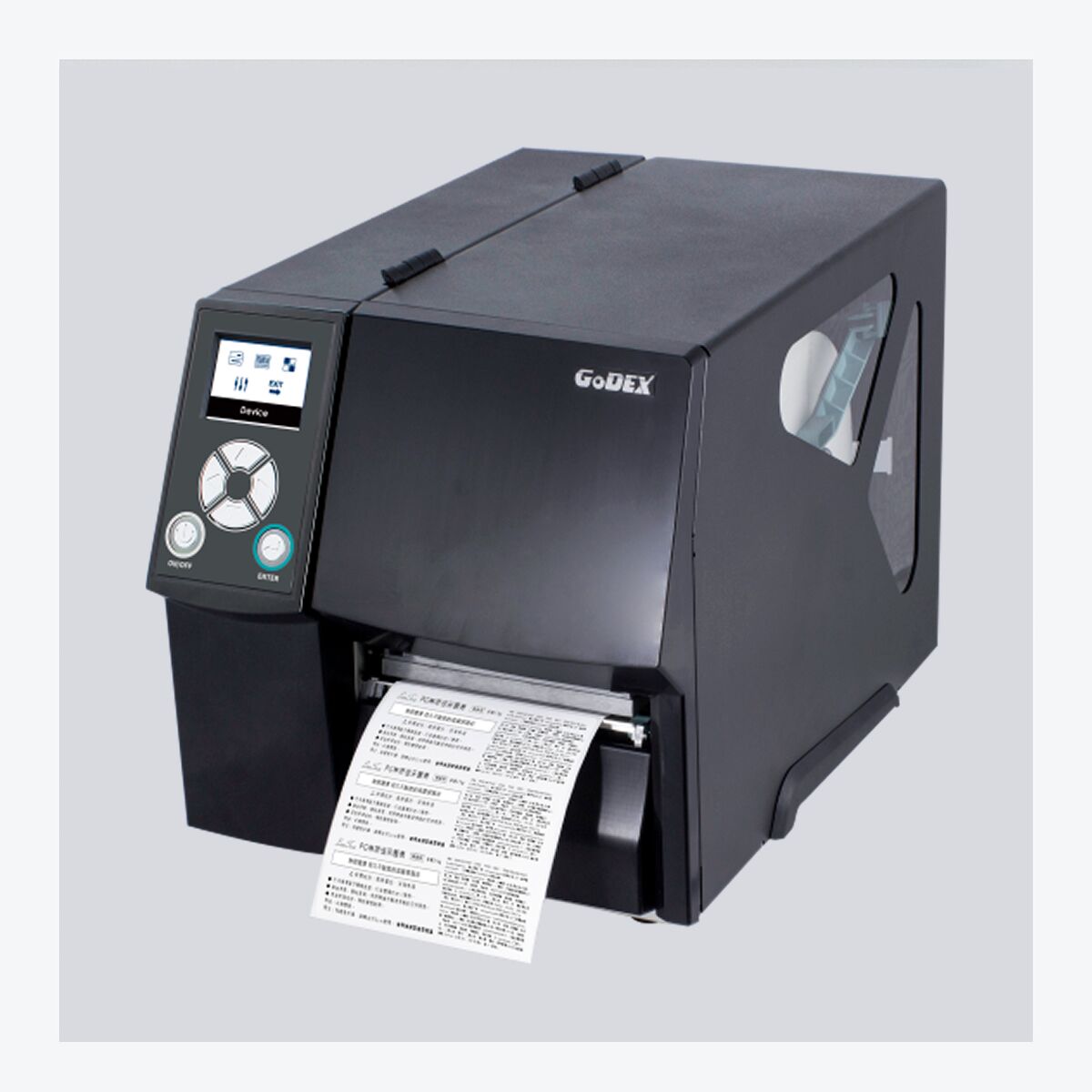

GoDEX ZX420i+ Light Compact Industrial Label Printer

GoDEX ZX420i+ Light Compact Industrial Label Printer
GoDEX ZX420i+ Light Compact Industrial Label Printer - Image 2
GoDEX ZX420i+ Light Compact Industrial Label Printer - Image 3
GoDEX ZX420i+ Light Compact Industrial Label Printer - Image 4

Please note that all hardware sales (including Godex printers and unwind stands) will be processed separately and shipped direct to reduce shipping costs and lead times.


Thermal Transfer Printing with GoDEX ZX420i+ Light Compact Industrial Label Printers

Innovating upon extensive customer feedback; GoDEX’s most cost-effective and space-saving Industrial printers, the ZX400i+ series, integrates industrial utility with its high performance and exquisite design. The ZX400i+ series not only remains classic in its design, but also provides multiple outstanding features in this new model.



Features:

  • Available for 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm) resolution
  • Intelligent Colour LCD panel for easy configuration
  • Robust metal casing and a solid print mechanism to take on heavy duty jobs
  • Calibration button makes label Calibration simple and fast
  • Multiple interfaces for multiple requirements
  • USB Host for extension memory and standalone operation
  • Automatic self-adjustment for coated inside/outside ribbons
  • Supports 450-meter ribbon capacity and 8-inch diameter label (3″core) for bulk printing
  • Modular TPH- easy to do the maintenance



Software Download & Tutorials:


DOWNLOAD SOFTWARE
How to edit text through GoLabel II?
Layout function introduction
Variable set up
How to set up Search to print?



Features:

  • Multiple connectivity options
  • Auto Calibration button
  • A full line of accessories
  • Easy ribbon/ media loading
  • Full-range adjustable label sensor
  • 32-bit CPU that offers fast ”first label out” throughput
  • Print speed – up to 6 ips
  • Colour TFT LCD and operation panel for easy and intuitive operation



Specifications:

Print Method Thermal Transfer / Direct Thermal
Resolution 203 dpi (8 dots/mm)
Print Speed Up to 6 IPS (152mm/s)
Print Width 4.25″ (108 mm)
Print Length Min. 0.16″ (4 mm)** – Max. 279.53″ (7100 mm)
Processor 32-bit RISC CPU
Memory Flash: 128 MB, SDRAM: 128 MB

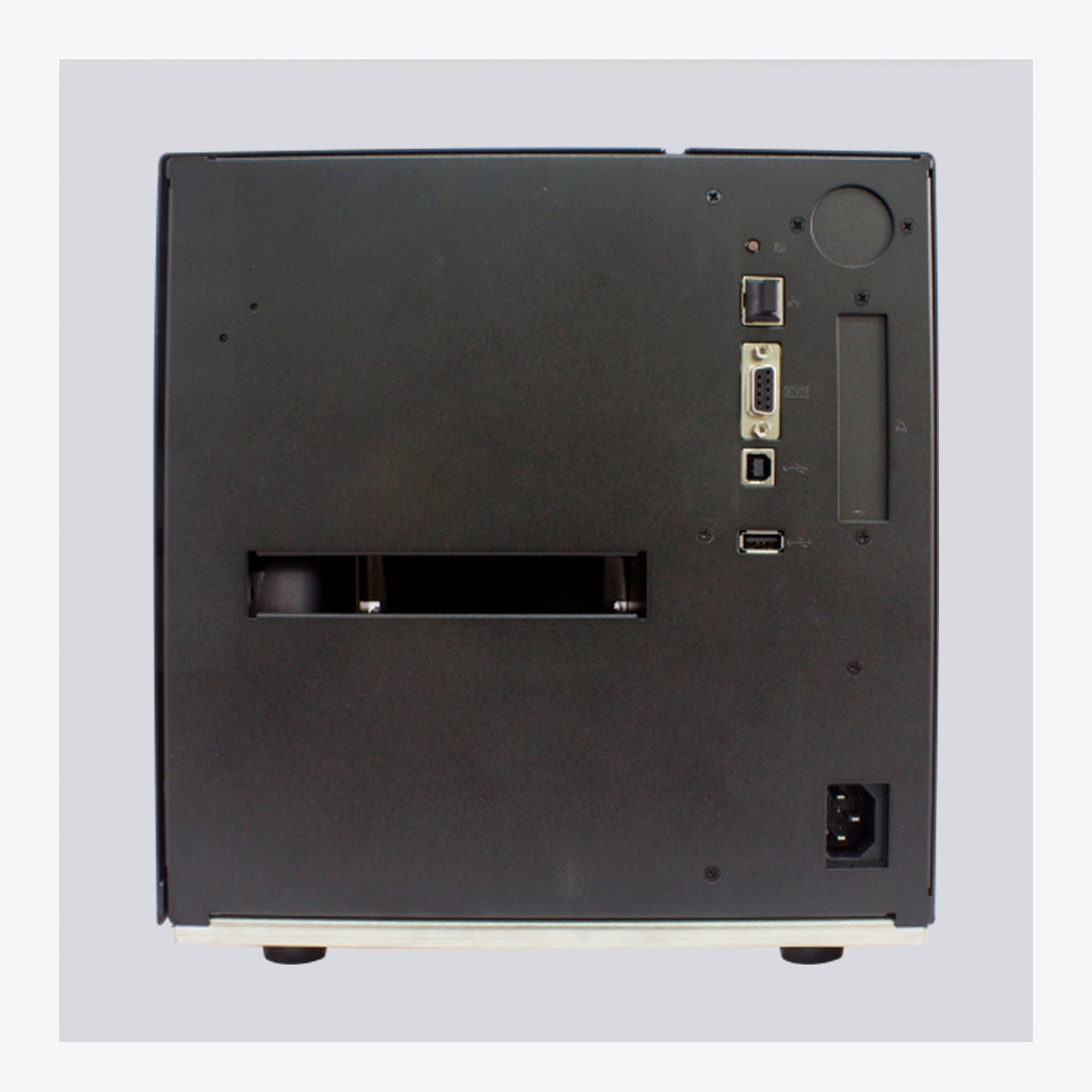

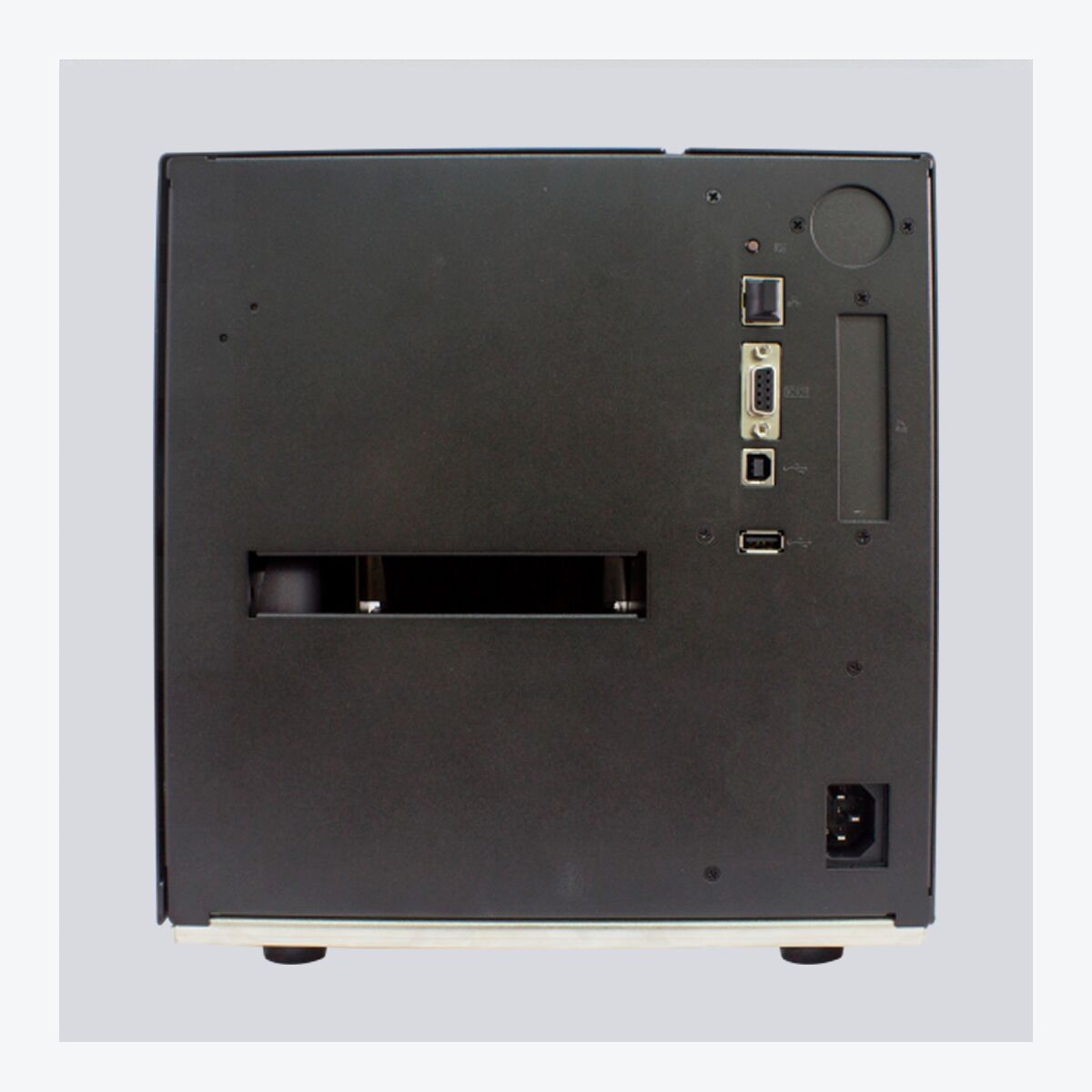

Interfaces
  • Serial port: RS-232 (DB-9)
  • USB 2.0 Device port (Type B)
  • USB Host port (Type A)
  • Ethernet 10/100 Mbps
Ribbon
  • Types : Wax, wax / resin, resin
  • Length : Max. 1476′ (450 m)
  • Width : 1.18″ Min. – 4.33″ (30 mm – 110 mm) Max
  • Ribbon Roll Diameter : 3″ (76.2 mm)
  • Core Diameter : 1″ (25.4 mm)
Media Types : Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width : Min. 1″ (25.4 mm) – Max. 4.64″ (118 mm)
Thickness : Min. 0.0024″ (0.06 mm) – Max. 0.01″ (0.25 mm)
Label Roll Diameter : Max. 8″ (203.2 mm) with 3″ (76.2 mm) core
Max. 6″ (152.4 mm) with 1.5″ (38.1 mm) core
Max. 5″ (127 mm) with 1″ (25.4 mm) core
Core Diameter : Min. 1 ” (25.4 mm) – Max. 3″ (76.2 mm)
Languages
(auto switching)		 EZPL, GEPL, GZPL, GDPL
(Godex, Eltron, Zebra, and Datamax)
Resident Fonts Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A and B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable
Download Fonts Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable
Asian fonts: 16×16, 24×24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001)
0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Codepages CODEPAGE 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode (UTF8, UTF16)
Barcodes 1-D Bar codes:
China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 and 5digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 and 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart, Random Weight and Pharmacode
2-D Bar codes:
Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39, GS1 Composite, DotCode, Marco PDF 417
RTC (Real Time Clock) Standard
Control Panel
  • Colour TFT LCD with navigation button
  • Power on/standby button with green colour LED backlight
  • Calibration button at rear panel
  • Control key : FEED / PAUSE / CANCEL with dual colour LED
  • Backlight: Ready (Green); Error (Red)
Options
  • Cutter (Dealer Install)
  • Parallel port adaptor module (Centronic female 36-pin)(Dealer Install)
  • BT (Dealer Installer)
  • Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install)
  • External label rewinder
  • Label Dispenser (Dealer Install)
  • External label unwinder



Additional Information:

Weight 13.4 kg
Dimensions 50 × 38 × 40 cm
Printer Size 4″
Print Method Thermal Transfer
Interface Bluetooth (Added Option), Ethernet, Serial (RS232), USB, Wi-Fi (Added Option)
DPI 203
